9GD-2.5 Towed Single-Blade Lawn Mower

Product Introduction

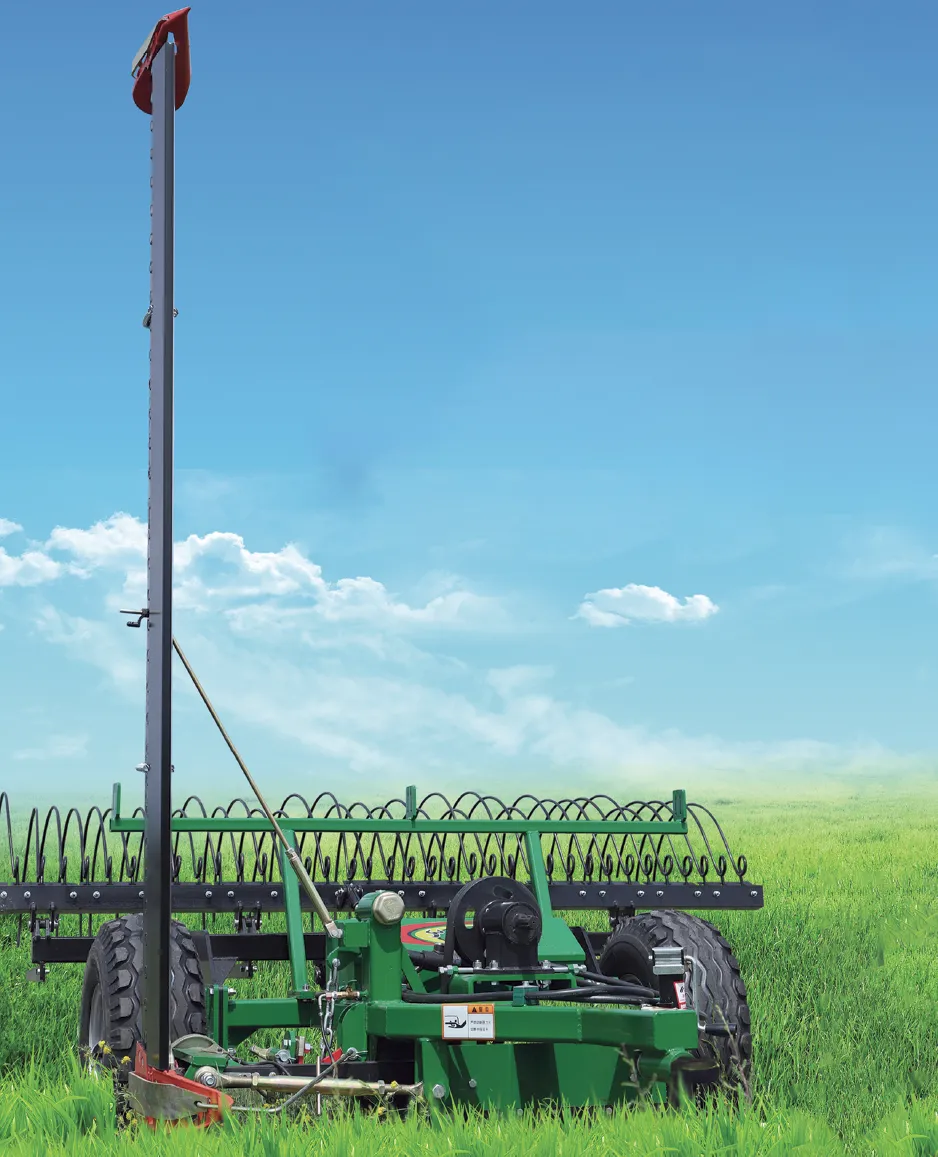

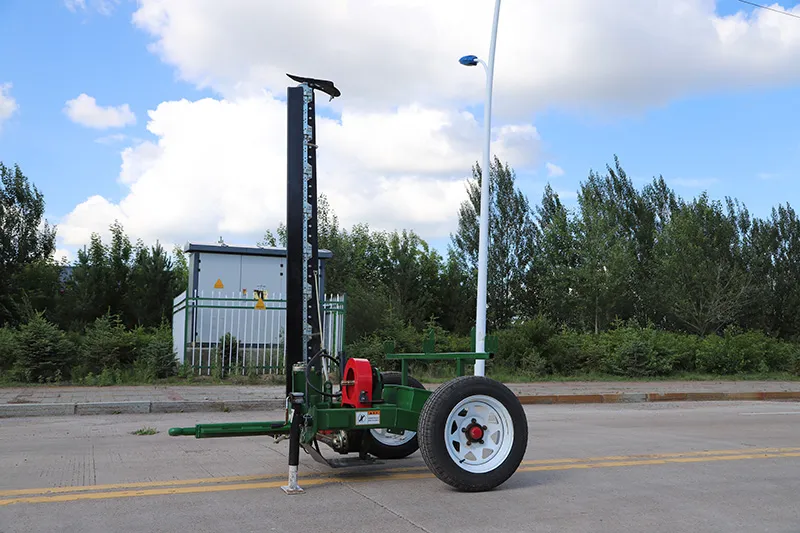

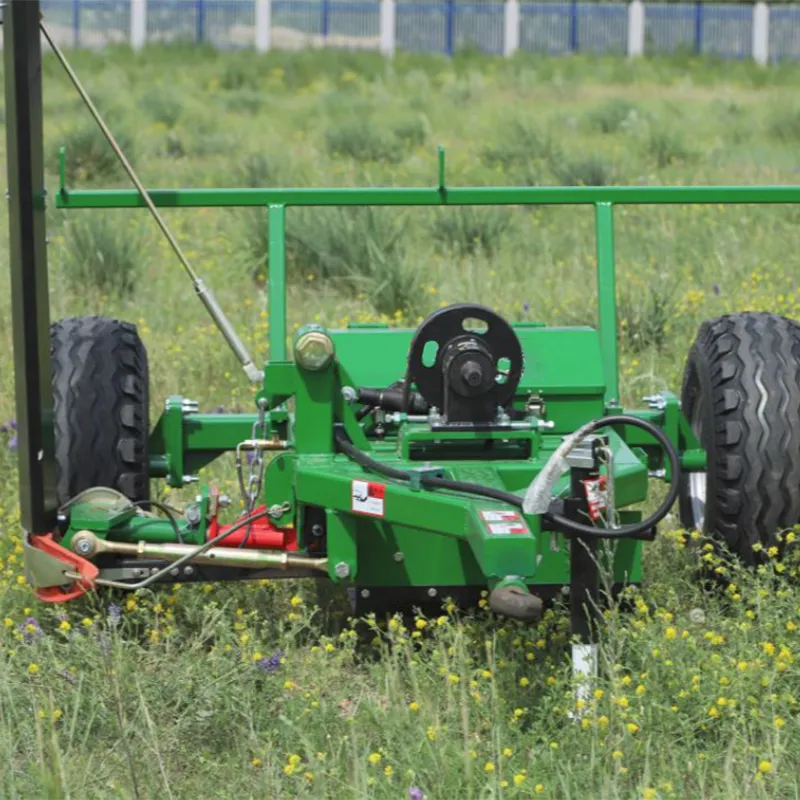

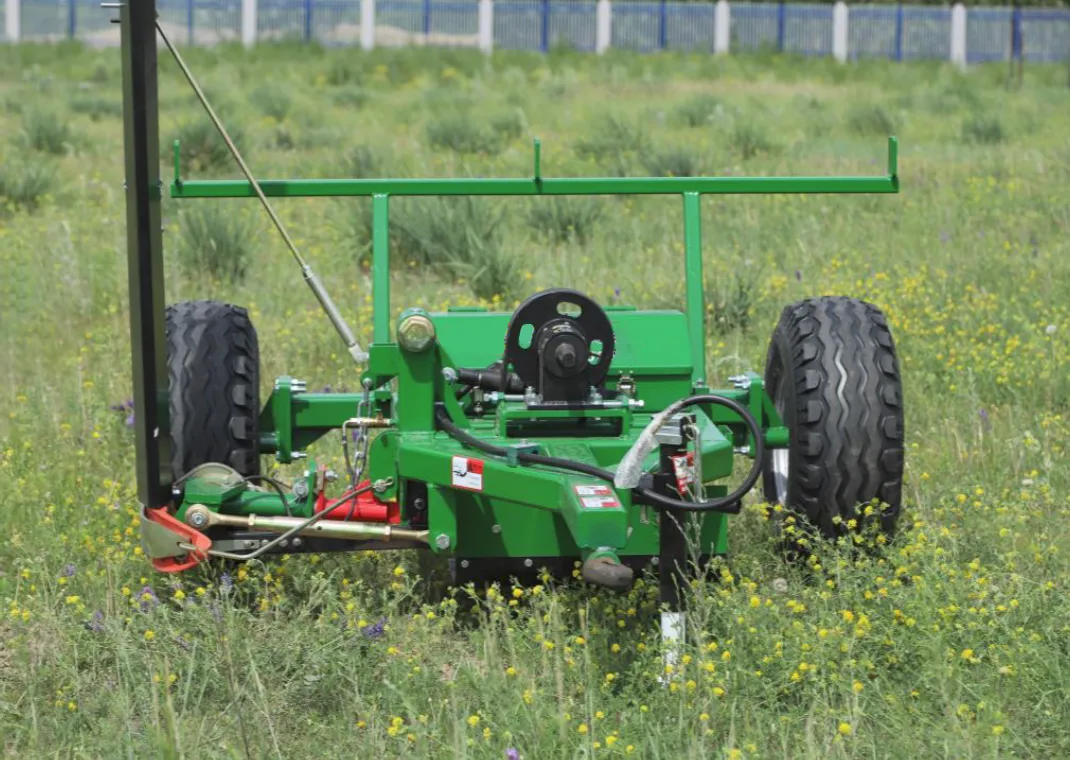

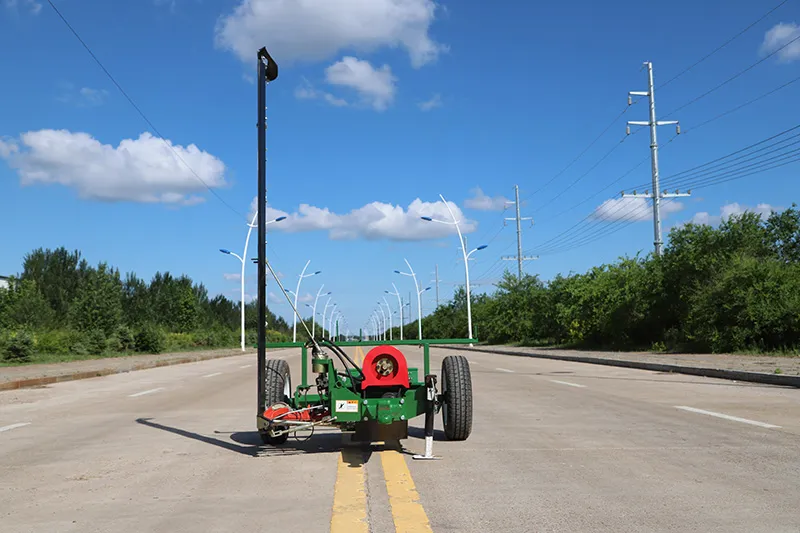

The 9GD-2.5 Towed Single-Blade Lawn Mower is a durable agricultural implement designed for efficient grass cutting in large fields and pastures. This model features a 2.5-meter cutting width, enabling coverage of extensive areas with minimal passes when towed behind a compatible tractor. Constructed with robust steel components, it includes a single-blade mechanism that ensures consistent performance across various terrain types, from flat lawns to moderately uneven ground.

For users seeking a reliable replacement of John Deere lawn mower, the 9GD-2.5 offers comparable functionality at a competitive price point, with straightforward maintenance requirements. It integrates well into existing farm operations, supporting tasks that involve lawn mower riding lawn mowers for broader landscape management. Operators appreciate its adjustable height settings, which range from 30 to 150 millimeters, allowing precise control over cut length to suit different grass varieties and seasonal needs.

As one option among the best riding lawn mower alternatives for towed applications, this unit minimizes downtime through its simple hitch system and replaceable wear parts. It complies with standard safety protocols, including protective guards around the blade assembly, and is suitable for professional agricultural use in regions like Brazil where efficient land maintenance is essential. Detailed specifications and compatibility information are available upon request.

Product Specification

Product Features

• Wide 2.5-meter cutting width with single blade lawn mower design, delivering clean and uniform cuts while requiring fewer passes over large areas.
• Matched power range 15-35 kW (20-50 HP) wheel tractor, making it a practical tractor lawn mower for most compact and mid-size agricultural tractors commonly used in Brazil.
• Suitable for natural grassland, planted pasture, wetlands, forests, stone fields, and hilly areas with multiple ground conditions, offering genuine versatility in real-world farm and ranch environments.
• Simple and reliable structure, easy to operate and maintain, low power consumption, with hydraulic system controlling cutting height adjustment for consistent results.
• Low failure rate and minimal downtime; replacement parts are standard and readily available, allowing one operator to complete large-scale mowing efficiently.
• Fully compliant with Chinese national standard GB/T 10940-2008 for rotary mowers and certified under the Agricultural Machinery Promotion Appraisal Certificate, ensuring documented quality and safety.

As a robust, cost-effective option in the best lawn mower 2025 category for towed agricultural applications, the 9GD-2.5 provides dependable performance for professional users who need a durable, low-maintenance implement for extensive land maintenance.

Tractor Compatibility

The 9GD-2.5 towed single-blade lawn mower is designed for wheeled tractors in the 15-35 kW (20-50 HP) range, which covers the most common tractor sizes found on Brazilian farms and ranches. It uses a standard Category 1 three-point hitch combined with a drawbar connection, allowing quick attachment without any modifications.

Common Compatible Tractor Models

• John Deere: 3025E, 3032E, 3038E, 4044M, 4052R
• Massey Ferguson: 1700E series, 2600 series (20-50 HP models)
• New Holland: Boomer 25-35, Workmaster 35
• Kubota: L2501, L3301, L3901, MX5200
• Mahindra: 2638, 3640, 4540
• LS Tractor: MT2 series, MT3 series
• Yanmar: YT235, SA424
• Brazilian brands: Agrale, Valtra, LS 20-50 HP models

Connection and Operating Notes

• Standard Category 1 three-point hitch + drawbar – attachment usually takes less than 5 minutes.
• Tractor requires at least one single- or double-acting remote hydraulic outlet for height adjustment.
• PTO speed: 540 rpm (standard on virtually all 20-50 HP tractors).
• Minimum tractor ground clearance ≥300 mm recommended for safe operation in wetlands or lightly stony areas.

Brazilian customers report excellent results with John Deere 3E series, Massey Ferguson 1700E series, and Kubota L series – connect and start mowing the same day with no extra setup.

If you are unsure about your specific tractor model, just send us the brand, model, and horsepower. We will confirm compatibility and provide detailed attachment instructions with photos within 24 hours.

9GD-2.5 Towed Single-Blade Lawn Mower vs. Major Brand Attachments

• The 9GD-2.5 offers a genuine 2.5-meter cutting width in a single, compact towed unit — significantly wider than most 84-inch models from John Deere, Bush Hog, and Land Pride in the same 20–50 HP class.
• At only 490 kg and 15 kW minimum power, it is lighter and easier on smaller tractors than comparable Western-brand cutters, while still delivering 2.0–3.0 ha/h productivity.
• The single-blade design with 34 teeth provides a clean cut with lower power consumption and simpler maintenance compared to multi-blade systems.
• Price advantage is substantial — typically 65–75 % lower than premium North American brands for equivalent or greater cutting width.

In short, the 9GD-2.5 delivers practical, high-coverage performance for Brazilian and South American farmers who run 20–50 HP tractors and need a reliable, wide-cut towed mower without the premium price tag of major international brands.

For a personalized quotation or compatibility check with your tractor, contact us with your tractor model and we will reply within 24 hours.

Customer Reviews

José Roberto Silva – Goiás, Brazil (2024) ☆☆☆☆ “We run a 180-hectare cattle farm with John Deere 3038E (38 HP). The 2.5 m width really cuts down the number of passes compared to our old 1.8 m mower. It handles wet pasture and light stones without problems. Blade is still the original after 14 months. Simple design, easy to grease and clean. Good value for the price we paid.”

Carlos Mendoza – Córdoba, Argentina (2025) ☆☆☆☆ “Bought it to replace a worn-out local-brand mower on a Massey Ferguson 2615 (45 HP). Weight is only 490 kg, so the tractor lifts and turns easily at the end of rows. Cutting height is fixed around 60 mm most of the time – works fine for our ryegrass and alfalfa fields. Hydraulic lift cylinder is reliable. Shipping from China took 42 days to Buenos Aires port, everything arrived complete.”

Michael Thompson – Queensland, Australia (2024) ☆☆☆☆ “Use it behind a Kubota L3901 (39 HP) on 120 acres of improved pasture. The single blade gives a reasonably clean cut at 8–9 km/h in dry conditions. It does leave some longer strands when grass is thick and damp, but that’s normal for this price level. Welds and paint quality are solid for the money. Replaced one shear bolt after hitting a hidden stump – cheap and quick fix.”

Luis Hernández – Jalisco, Mexico (2025) ☆☆☆☆ “We have hilly terrain and some rocky patches. The mower follows the ground well when towed, better than a rigid 3-point model we tried before. PTO runs at standard 540 rpm, no issues. After one full season the gearbox is still quiet and no oil leaks. For small and medium farmers who don’t need heavy brush cutting, it does the job without complications.”

André Botha – Free State, South Africa (2024 ☆☆☆☆ “Paired with Mahindra 4540 (42 HP). Productivity is around 2.5–2.8 ha per hour in normal grass. The 34-tooth blade is thick and still sharp after 400 hours. Only negative point: transport width is 4.3 m, so we remove the outer guard when moving on narrow roads. Overall, reliable machine and much cheaper than the American brands we looked at.”

Frequently Asked Questions

Q1: What is the real cutting width and how much area can it cover per hour? A: The effective cutting width is 2.5 meters (98 inches). At normal working speeds of 6–10 km/h, productivity is 2.0–3.0 hectares per hour depending on field conditions and tractor speed.

Q2: Will it work with my 20–50 HP tractor? A: Yes. It is designed for 15–35 kW (20–50 HP) wheeled tractors with standard Category 1 three-point hitch (or simple drawbar) and 540 rpm PTO. Popular compatible models include John Deere 3E series, Massey Ferguson 1700E, Kubota L series, New Holland Boomer, and Mahindra 2600/3600 series.

Q3: Is the cutting height adjustable? A: Yes. Average cutting height is 50–70 mm and can be adjusted by changing the hydraulic top-link length or using the tractor’s remote hydraulic outlet. Fine adjustments are made in minutes.

Q4: Can it handle wet, hilly, or slightly stony pastures? A: The towed design and low center of gravity allow good ground following on moderate slopes and wet areas. It manages light stones and small stumps thanks to the 34-tooth single blade and shear-bolt protection. It is not intended for heavy brush or large rocks.

Q5: How long does shipping take to Brazil and South America? A: From our factory in Limeira, São Paulo, domestic delivery within Brazil is 5–12 business days. Export to Argentina, Paraguay, Uruguay, Bolivia, and Colombia usually takes 15–35 days by sea or combined truck/sea transport.

Q6: What spare parts should I keep in stock? A: Most customers keep 2–3 shear bolts, one spare blade (34-tooth), PTO shaft safety cover, and a set of grease fittings. All parts are low-cost and shipped the same day from Brazil.

Q7: Is it a good replacement of John Deere lawn mower or other brand rotary cutters? A: Many Brazilian and Argentine customers use the 9GD-2.5 as a direct, lower-cost replacement for 84–96 inch John Deere, Bush Hog, or Land Pride models while gaining a wider 98-inch cut and lighter weight.

Q8: Do you offer warranty? A: Yes – 12 months on gearbox and structure, 6 months on wearable parts. Warranty service and spare parts are handled directly from our Limeira facility.

Q9: Can I buy only the gearbox, PTO shaft, or hydraulic cylinder separately? A: Yes. All components (gearboxes 40–120 HP, PTO shafts, hydraulic cylinders, lubrication systems) are available individually for repairs or custom projects.

Q10: How do I get a quotation or catalog? A: Send your tractor model and WhatsApp/email. We reply with price, technical sheet, and shipping cost within 24 hours.

Why Choose US?

Brazil Agricultural Balers Co., Ltd. was founded in 2021 and is located at Pedro Elias S/N, Limeira, São Paulo, Brazil – the agricultural heartland of Brazil. We are a full-service manufacturer integrating R&D, production, sales, and after-sales support, with a modern 32,000 m² facility, 180 employees, ISO 9001:2015 certification, and national high-tech enterprise status. Our equipment serves farmers across Brazil and is exported throughout South America.

In addition to the widely used 9GD-2.5 towed single blade lawn mower – a practical tractor lawn mower and reliable replacement of John Deere lawn mower for large-scale pasture maintenance, often regarded among the best lawn mower 2025 options for cost-conscious operators of lawn mower riding lawn mowers – we maintain complete in-house production of critical components and complementary machines.

We also manufacture agricultural gearboxes (40–120 HP), PTO shafts with safety clutches, hydraulic cylinders, centralized lubrication systems, and a full line of round balers (mini to 2.2 m pickup width), disc mowers, rakes, and wrappers. All products are built in Limeira, São Paulo, to the same quality standards, ensuring compatibility, durability, and readily available spare parts for Brazilian and regional customers.

Contact us directly for catalogs, pricing, or local dealer information.
